India’s infrastructure sector is experiencing unprecedented growth, with massive investments in roads, railways, dams, and urban development projects. At the heart of this transformation lies a critical component that often goes unnoticed: efficient crushing and screening solutions. Whether you’re a quarry operator, mining contractor, or construction company, understanding the right equipment can dramatically impact your project’s success and profitability.

Understanding Crushing and Screening: The Foundation of Modern Infrastructure

Crushing and screening are fundamental processes that transform raw rock and minerals into usable aggregates for construction. The journey from rock to value involves multiple stages, each requiring specialized equipment designed to maximize output while minimizing operational costs.

What Makes an Effective Crushing System?

An efficient crushing system isn’t just about breaking rocks—it’s about creating the right particle size distribution, maintaining consistent quality, and optimizing the cost per ton. Modern crushing solutions integrate multiple technologies to achieve these goals:

Primary Crushing: This initial stage typically uses jaw crushers to reduce large rocks (up to 1000mm) into manageable sizes. The key factors here include feed opening size, crushing capacity, and the ability to handle varied material hardness.

Secondary and Tertiary Crushing: Cone crushers and vertical shaft impactors (VSI) refine the material further, producing specific aggregate sizes for different construction applications. These stages are crucial for achieving the desired product specifications.

Screening: Vibrating screens separate crushed material into various size fractions, ensuring each aggregate grade meets industry standards. Advanced screening technology can handle capacities from 75 TPH to over 300 TPH with multiple deck configurations.

Key Equipment for Total Crushing Solutions

Jaw Crushers: The Workhorse of Primary Crushing

Single toggle jaw crushers have become the industry standard for primary crushing applications. Their robust welded frame construction provides exceptional fatigue strength while keeping maintenance requirements low. Modern designs feature:

• Optimized nip angles for better material grip and crushing efficiency

• Reversible jaw plates that extend wear life and reduce downtime during replacements

• Hydraulic toggle systems for reliable operation with minimal manual intervention

• Quick CSS adjustment for precise closed side setting control without production stoppage

The capacity range typically spans from 60 HP units handling 400mm feed sizes to powerful 215 HP crushers processing 950mm rocks, making them versatile for various applications.

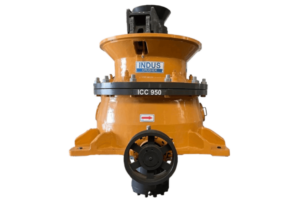

Cone Crushers: Precision in Secondary Crushing

Cone crushers excel in producing consistent, cubical aggregates for high-specification applications. Their advantages include:

• Larger mantle diameters combined with optimized speeds enhance productivity significantly

• Specialized crushing chambers designed for both coarse and fine feed materials

• No backing compound required, making liner changes simpler, safer, and more efficient

• Built-in overload protection against foreign metal entry, preventing costly damage

With power ratings from 150 HP to 300 HP, modern cone crushers deliver capacities ranging from 50 TPH to 350 TPH depending on the model and application.

Vertical Shaft Impactors: Creating Quality Sand and Shaped Aggregates

VSI technology has revolutionized manufactured sand (M-sand) production in India. These machines use rock-on-rock or rock-on-anvil crushing principles to produce high-quality, well-shaped aggregates. Key features include:

• Multiple rotor configurations (3 to 6 ports) for different rock types and applications

• Advanced open table designs for increased throughput

• Rotor speeds of 50-65 m/s ensuring optimal crushing action

• Drop-in wear tips for quick replacement and minimal downtime

VSI crushers range from compact 75 HP units to powerful 440 HP machines, with capacities suited for both secondary and quaternary crushing applications.

The Screening Revolution: Precision Separation Technology

Vibrating Screens

vibrating screens remain essential for aggregate separation, featuring:

• Circular motion with dual-bearing vibrators for consistent material stratification

• Modular deck options (1 to 4 decks) providing flexibility for different separation requirements

• Adjustable stroke via counterweights for optimizing screening efficiency

• Huck bolted structures ensuring long-term durability

These systems handle everything from scalping operations to final product sizing, with capacities from 75 TPH to 300 TPH.

UFO Screens: Next-Generation Fine Screening

For applications requiring precise fine screening, UFO screens represent cutting-edge technology:

• Variable frequency control from 3000 RPM to 9000 RPM

• Independent deck frequencies for multi-size separation

• Higher G-force vibration for difficult-to-screen materials

• Automatic self-cleaning cycles reducing maintenance interventions

• IoT-based real-time monitoring for predictive maintenance and optimization

These screens excel in specialized applications including fertilizer production, dry sand manufacturing, quartz powder separation, and frac sand sizing offering precision from 50 microns upward.

Washing Solutions: Maximizing Sand Quality and Recovery

Sand washing has become increasingly critical as environmental regulations tighten, and quality standards rise. Modern power wash systems offer:

• Compact skid designs for easy transportation and installation

• Premium rubber liners providing enhanced wear resistance

• Customizable dewatering screens with adjustable spray bars

• Variable frequency drives for optimized performance

• High G-force dewatering mechanisms ensuring superior water recovery

Capacities typically range from 60 TPH to 250 TPH, with integrated hydrocyclones for efficient fines separation and maximum material recovery.

Choosing the Right Solution for Your Application

Selecting crushing and screening equipment requires careful consideration of several factors:

Material Characteristics: Rock hardness, abrasiveness, and moisture content significantly impact equipment selection and wear rates.

Production Requirements: Target capacity, product specifications, and operational hours determine the size and type of equipment needed.

Site Conditions: Available space, power supply, environmental restrictions, and accessibility influence plant layout and equipment configuration.

Cost Optimization: Initial investment, operational costs, maintenance requirements, and expected equipment life must be balanced for optimal ROI.

The Make in India Advantage

India’s crushing and screening equipment industry has matured significantly, with domestic manufacturers now offering world-class technology at competitive prices. This shift brings several advantages:

• Reduced lead times for equipment delivery and spare parts

• Local service support minimizing downtime and ensuring rapid response

• Cost-effective solutions without compromising on quality or performance

• Customization capabilities tailored to Indian operating conditions

• Comprehensive training and after-sales support in local languages

Companies with over 25 years of experience in construction and mining equipment now provide total crushing solutions, from initial consultation through plant commissioning and ongoing operational support.

Future Trends in Crushing Technology

The industry continues evolving with several key trends:

Automation and IoT Integration: Real-time monitoring, predictive maintenance, and automated control systems optimize performance and reduce operational costs.

Energy Efficiency: Modern designs focus on maximizing output per kilowatt, reducing environmental impact and operating expenses.

Modular Plant Designs: Quick-assembly systems enable faster project mobilization and flexible configurations for changing requirements.

Sustainability Focus: Dust suppression systems, water recycling, and noise reduction technologies address environmental concerns.

Making the Right Investment Decision

Whether you’re establishing a new crushing plant or upgrading existing equipment, partnering with experienced manufacturers ensures success. Look for suppliers offering:

• Comprehensive product portfolios covering all crushing and screening needs

• Pan-India service networks with readily available spare parts

• Customization capabilities for specific applications

• Training programs for operational and maintenance staff

• Flexible support options including AMC and OMC contracts

The right crushing and screening solution transforms raw material into valuable products efficiently, reliably, and profitably building India’s infrastructure, one rock at a time.
